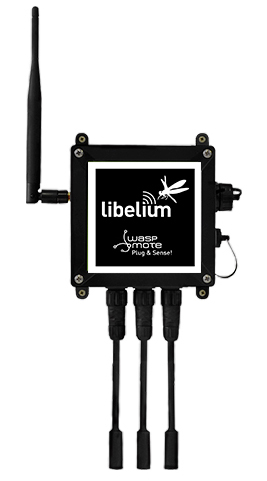

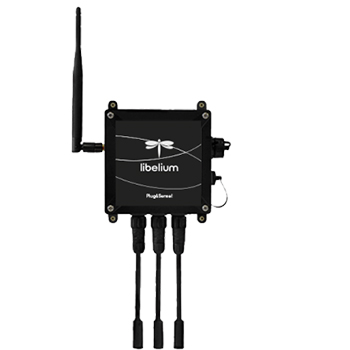

Plug & Sense

Features

  • 10 models. More than 120 sensors.
  • Add or change a sensor probe in seconds
  • Robust waterproof IP65 enclosure and special brackets for installation in street lights
  • Solar powered with internal and external panel
  • Radios: 802.15.4, 868, 900, WiFi, 4G, Sigfox and LoRaWAN
  • Industrial Protocols: RS-232, RS-485, 4-20 mA, Modbus, CAN Bus
  • Over the Air Programming (OTA)
  • Fully certified for the main markets: CE, FCC, IC, ANATEL, RCM, PTCRB, AT&T

Technical Overview

Certifications

Quality & Certification Document Management System

Read More...

Industrial Protocols

Industrial Protocols on Plug & Sense!

Read More...

Features

Waspmote Plug & Sense! encapsulated line offers to users:

  • Robust waterproof IP65 enclosure.
  • 10 models integrating more than 120 sensors.
  • Add or change a sensor probe in seconds.
  • Solar powered with internal and external panel.
  • Radios: 802.15.4, 868, 900, WiFi, 4G, Sigfox and LoRaWAN.
  • Over the Air Programming (OTA).
  • Special brackets ready for street lights installation.
  • Fully certified for the main markets: CE, FCC, IC, ANATEL, RCM, PTCRB, AT&T.

Read More...

Industrial Protocols

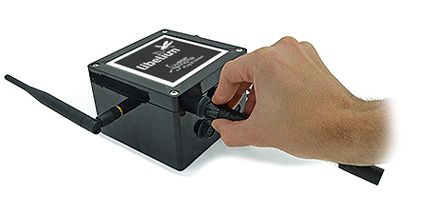

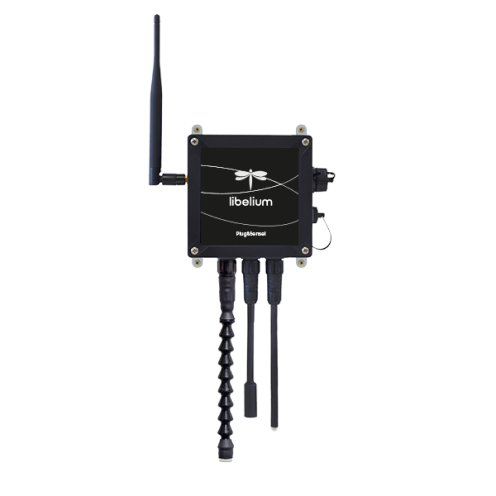

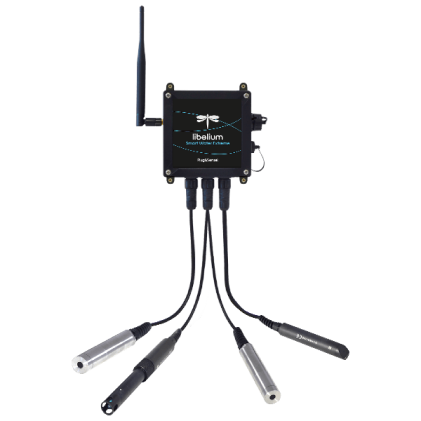

Sensor Probes

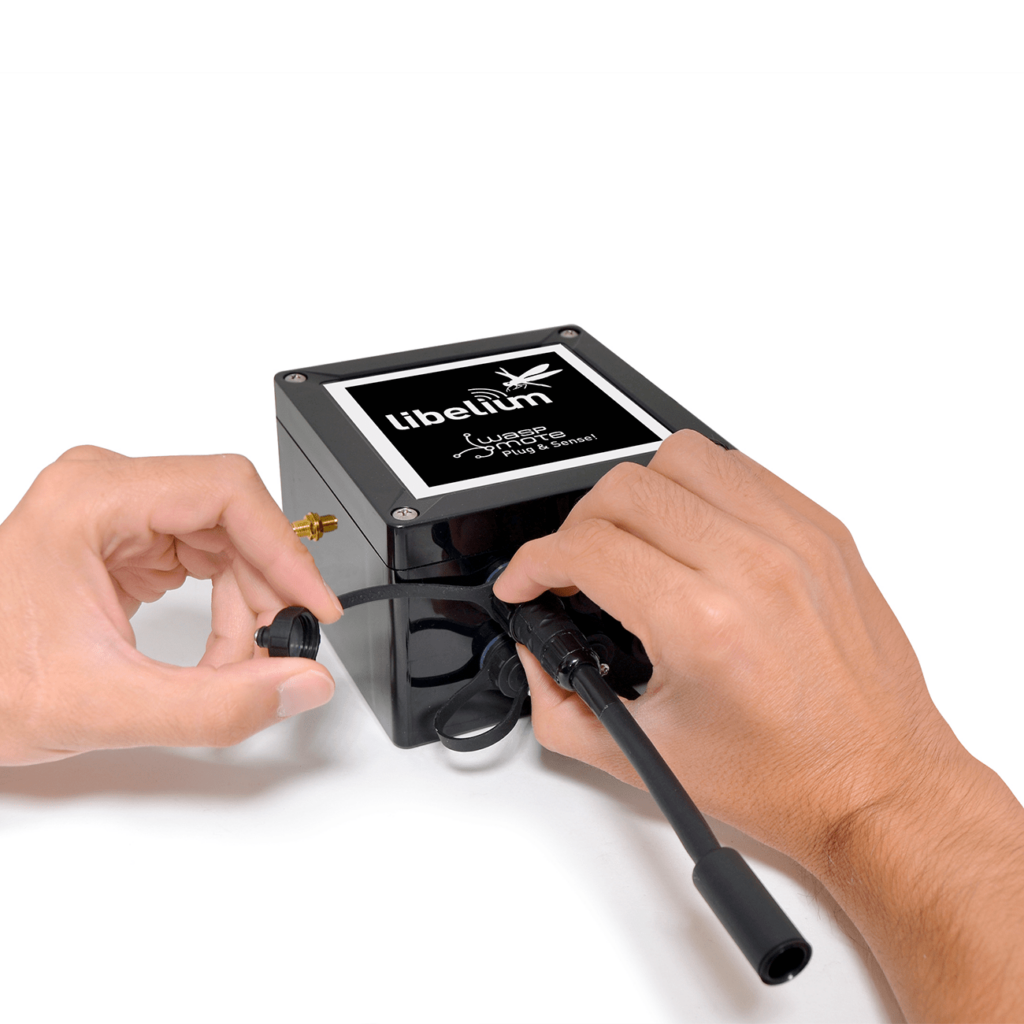

Change sensor probes in just seconds

Sensor probes can be attached easily by just screwing them into the bottom sockets. This allows you to add new sensing capabilities to existing networks in just minutes.

In the same way, sensor probes may be easily replaced in order to ensure the lowest maintenance cost of the sensor network.

Read More...

Industrial Protocols

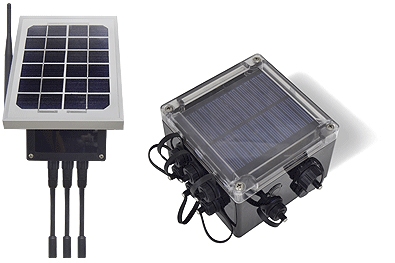

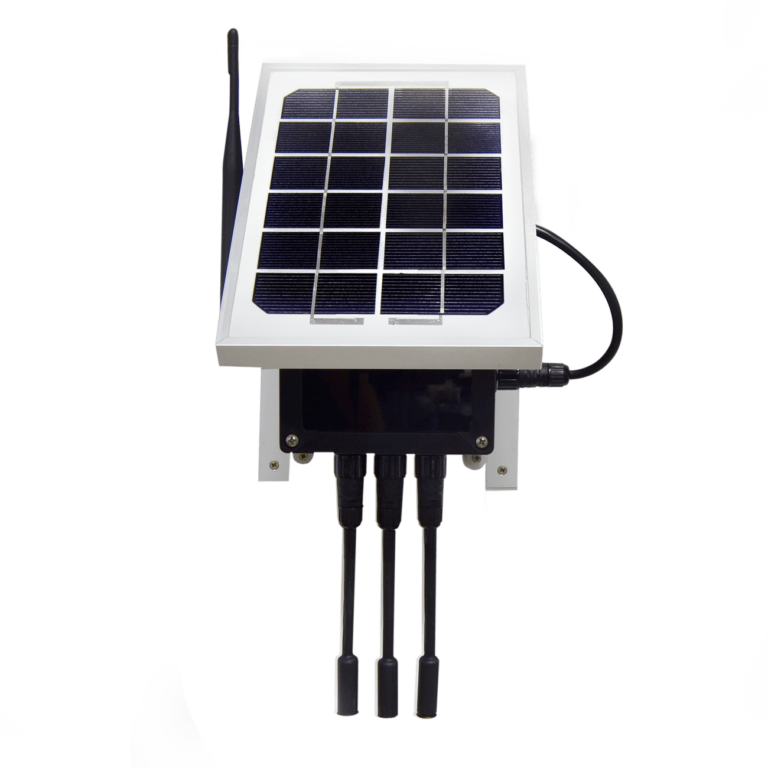

Solar Powered

External and internal Solar Panel

Battery can be recharged using the internal or external solar panel options (common USB-recharging is of course another option).

The external solar panel is mounted on a 45º holder which ensures the maximum performance of each outdoor installation.

For the internal option, the solar panel is embedded on the front of the enclosure, perfect for use where space is a major challenge.

The rechargeable battery has a load of 6600 mAh, what ensures non stop working time during the weeks where the sunlight is lower.

Read More...

Industrial Protocols

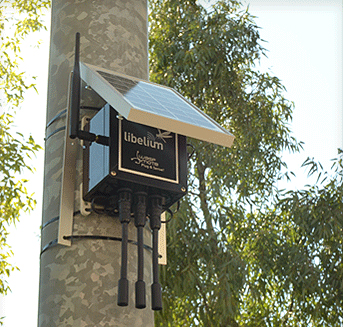

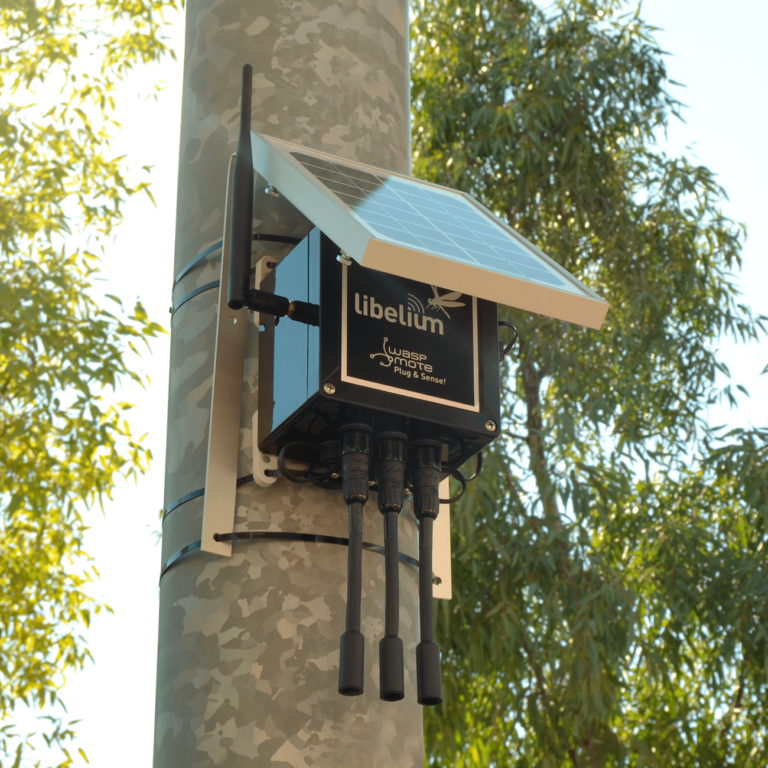

Installation

Fast deployment

Waspmote Plug & Sense! counts with holders specially designed for outdoor installations in street-lights and building fronts.

Metal cable ties are provided to easily adjust the node to street light posts.

Installation can be done in minutes as you only need to tie the cables on the enclosure holders and then to the post. Once the node is secured just press the on button and the node will start automatically to send the data gathered from the sensors to the Gateway.

Read More...

Industrial Protocols

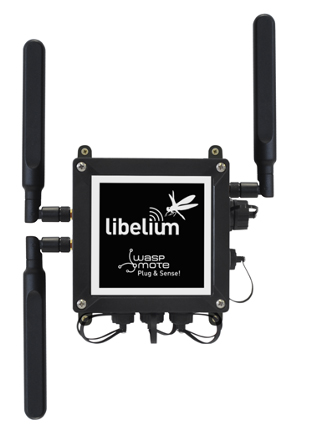

Radio Technologies

High sensitivity and trasmission power

There are multiple radio options in order to communicate the sensor nodes with the Gateway. 802.15.4, 868 and 900 are used commonly in order to create local, start topologies. WiFi can be used to connect with any WiFi AP while the 4G radio can be used to send the sensor data directly to the Cloud without using an intermediate Gateway. Sigfox and LoRaWAN modules are special for IoT applications and get very long range links.

The complete list of the available radios is:

  • 802.15.4 (2.4 GHz), 2 versions: Europe and world.
  • RF (868 MHz)
  • RF (900 MHz), 3 versions: US, Brazil and Australia
  • WiFi (2.4 GHz)
  • 4G, 3 versions: Europe/Brazil, US and Australia.
  • Sigfox, 2 versions: Europe and US
  • LoRaWAN, 2 versions: Europe and US

Read More...

Industrial Protocols

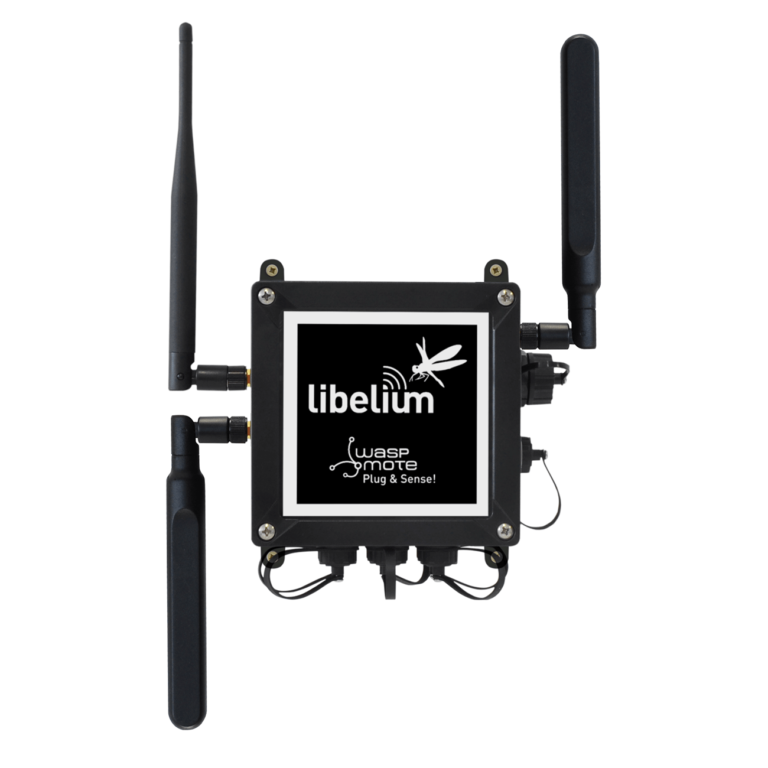

Geolocation Tracking + Sensing

Real-time tracking applications

The 4G module features a GPS receiver which allows to easily perform real-time tracking applications.

The idea is simple: read the GPS coordinates (longitude and latitude) and send them by using a HTTP request to a web server along with extra information from the sensors included in the node. Then use a browser to load the PHP webpage which uses Google Maps to show the location in real-time.

Read More...

Industrial Protocols

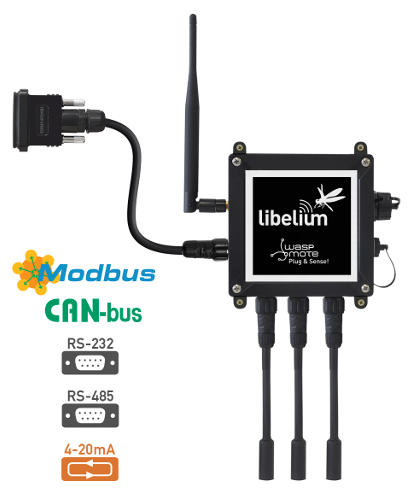

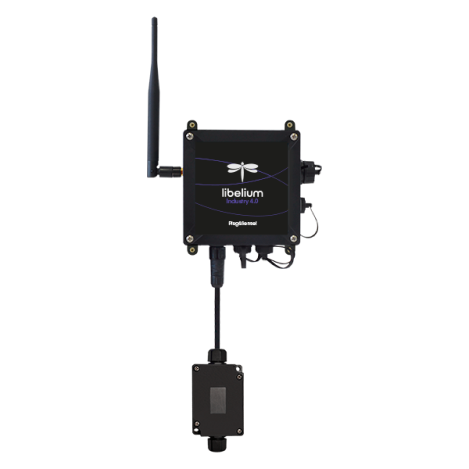

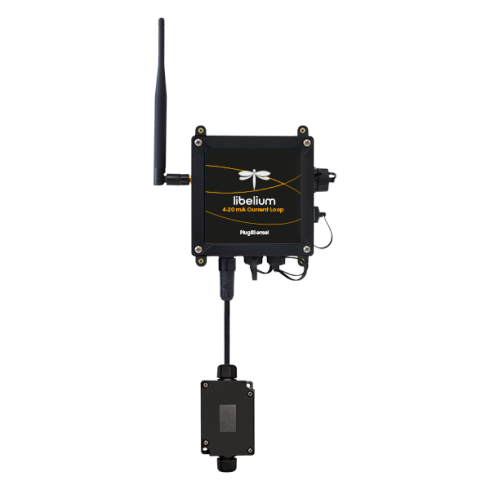

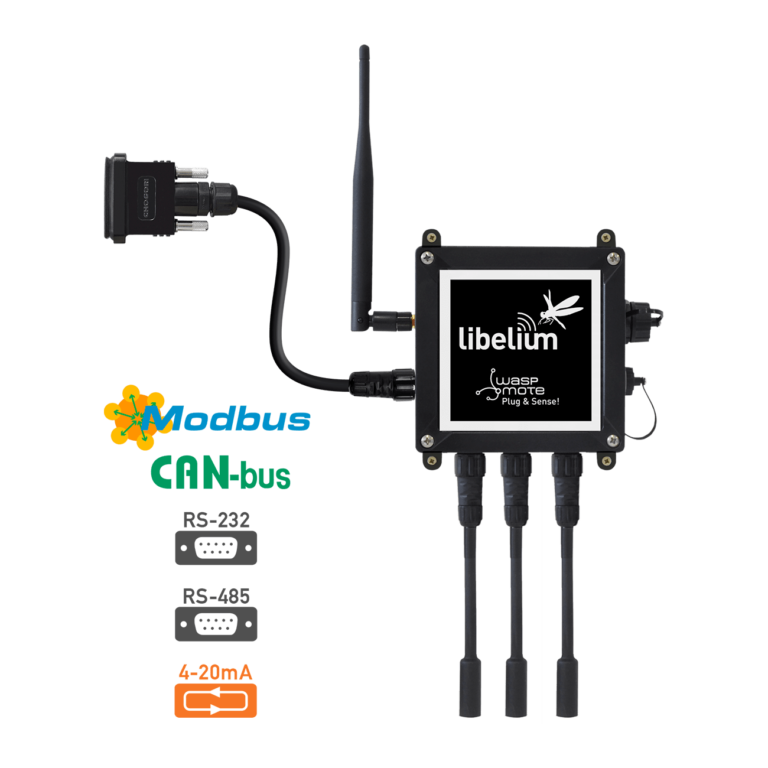

Industrial Protocols

Connect your industrial devices to Plug & Sense!

Plug & Sense! units are able to connect with the most common industrial communication protocols: RS-232, RS-485, Modbus, 4-20 mA (current loop) and CAN Bus. This feature opens a wide variety of applications for industrial sensing and automation, military, automobile, vehicle tracking or remote factory management.

There are 3 main uses:

  • Connect any sensor to an existing industrial bus.
  • Add wireless connectivity to wired buses.
  • Connect industrial devices to the Cloud

Read More...

Industrial Protocols

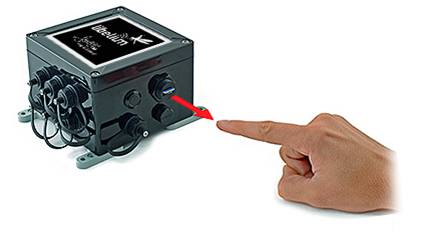

External SIM Socket

Choose your own Mobile Network Operator

Plug & Sense! models with 4G radio have an External SIM socket which allows developers to easily add and change a carrier SIM card in order to connect the devices to any 4G / 3G / GPRS / GSM cellular network.

Read More...

Industrial Protocols

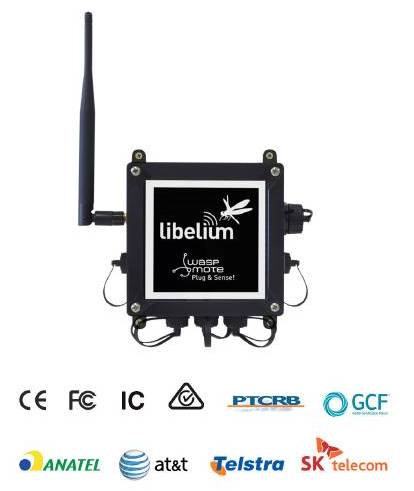

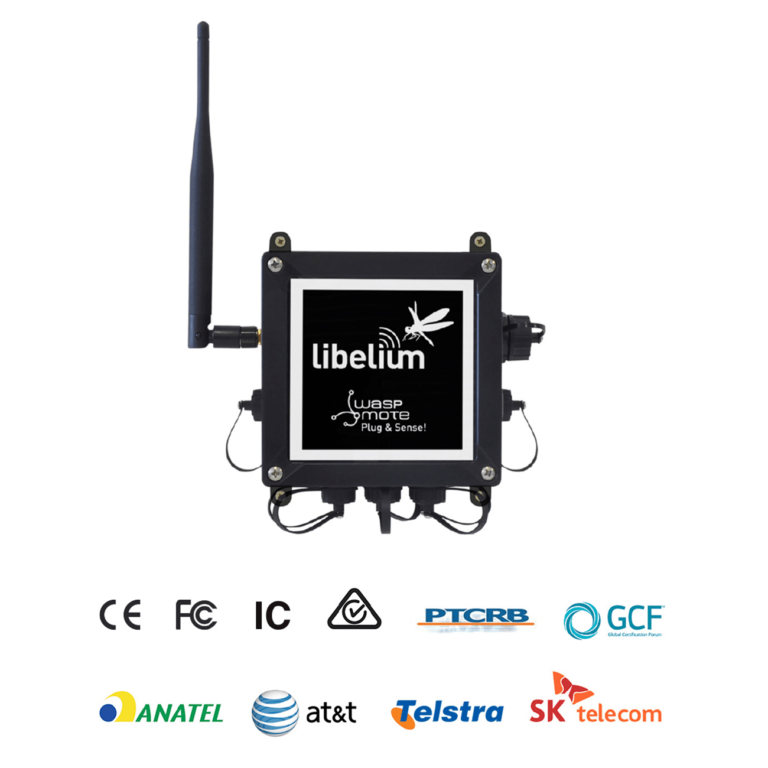

Certifications

Ready for any market

Plug & Sense! is the first IoT sensor platform to be fully certified:

  • CE (Europe)
  • FCC (US)
  • IC (Canada)
  • ANATEL (Brazil)
  • RCM (Australia)
  • PTCRB (cellular certification for US)
  • AT&T (cellular certification for US)

Read More...

Industrial Protocols

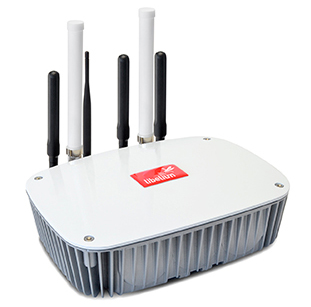

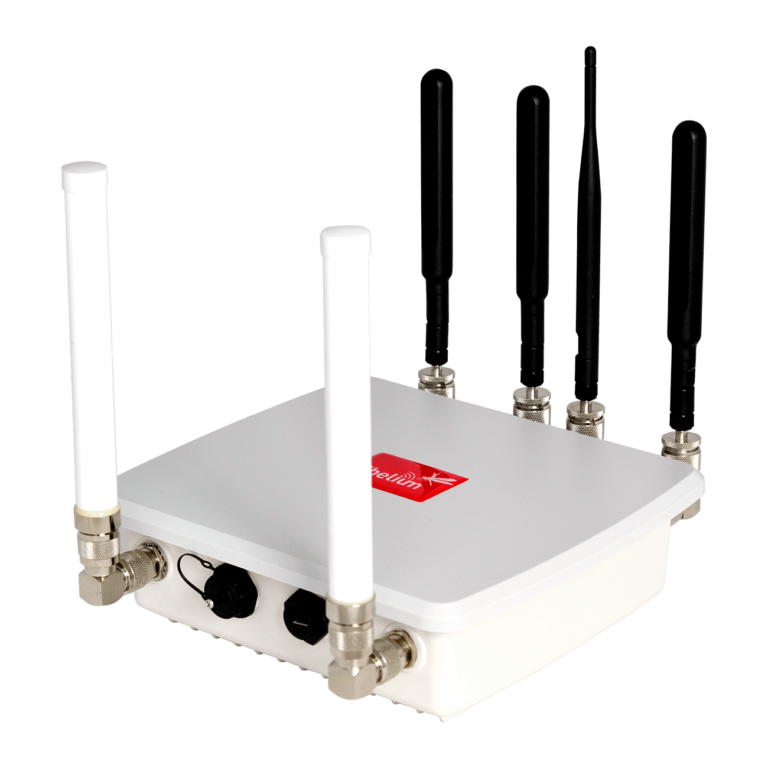

Data to the Cloud

Fully compatible

The sensor data gathered by the Waspmote Plug & Sense! nodes is sent to the Cloud by Meshlium, the Gateway router specially designed to connect Waspmote sensor networks to the Internet via Ethernet and 4G interfaces.

Read More...

Industrial Protocols
