INT820B Wheeled Robot (4 wheels)

Intrinsic Solutions INT820B Wheeled Programmable Robot contains

Robot Base and Batteries

✅ Husky Robot Base consisting of: Chassis (1), payload mounting framework (1), onboard microcontroller (1), encoders (2), current and voltage sense package (1), temperature diagnostics package (1) , Emergency Stop button will be provided.

✅ Swappable Lithium Battery Specifications: Batteries will be provided as per your choice of battery placement location in robot (customer needs to choose from two choices given – with battery in battery bay area OR with battery in top area or user payload area). Battery packs are not hot-swappable. Includes a charger array.

Computers: Two Computers

✅ Computer-Mini-ITX board consisting of Intel i5, 8 GB RAM, 120 GB SSD, 2x RS232, 10x USB 2.0, 2x GigE, PCI Express and a Wireless Gamepad.

✅ Combination of Computer-Mini ITX (specs as above) along with GPU 1050 (It is better than Xavier) Specifications: Adding GeForce GTX 1050 Ti to the Mini-ITX computer which has: 4GB, 128 bit, GDDR5 RAM, 768 CUDA Cores.

Communication

✅ 5 Port Network Switch: Specifications: 5 port switch with QOS and VLAN features. Vehicle mounting and wiring included.

✅ WiFi Router

Sensors

✅ Camera Flir Blackfly S

✅ PolyNav 200S IMU

✅ Ouster OS1-16 Gen1 – 16 channel Lidar

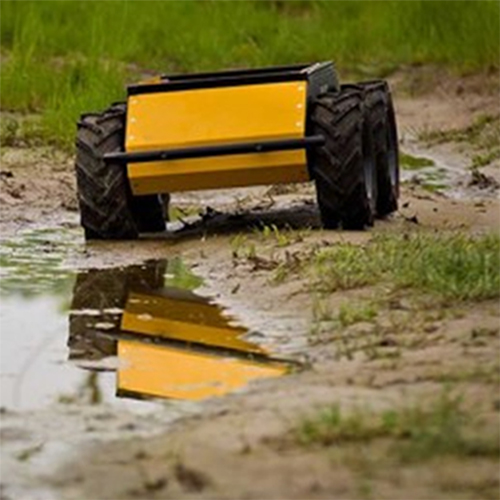

INT80B-robot

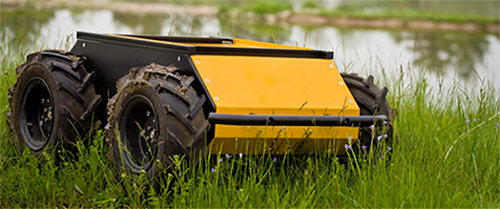

INT80B-robot

The robot will consist of all the components integrated using circuits and parts.
