Lantronix · Industrial IoT

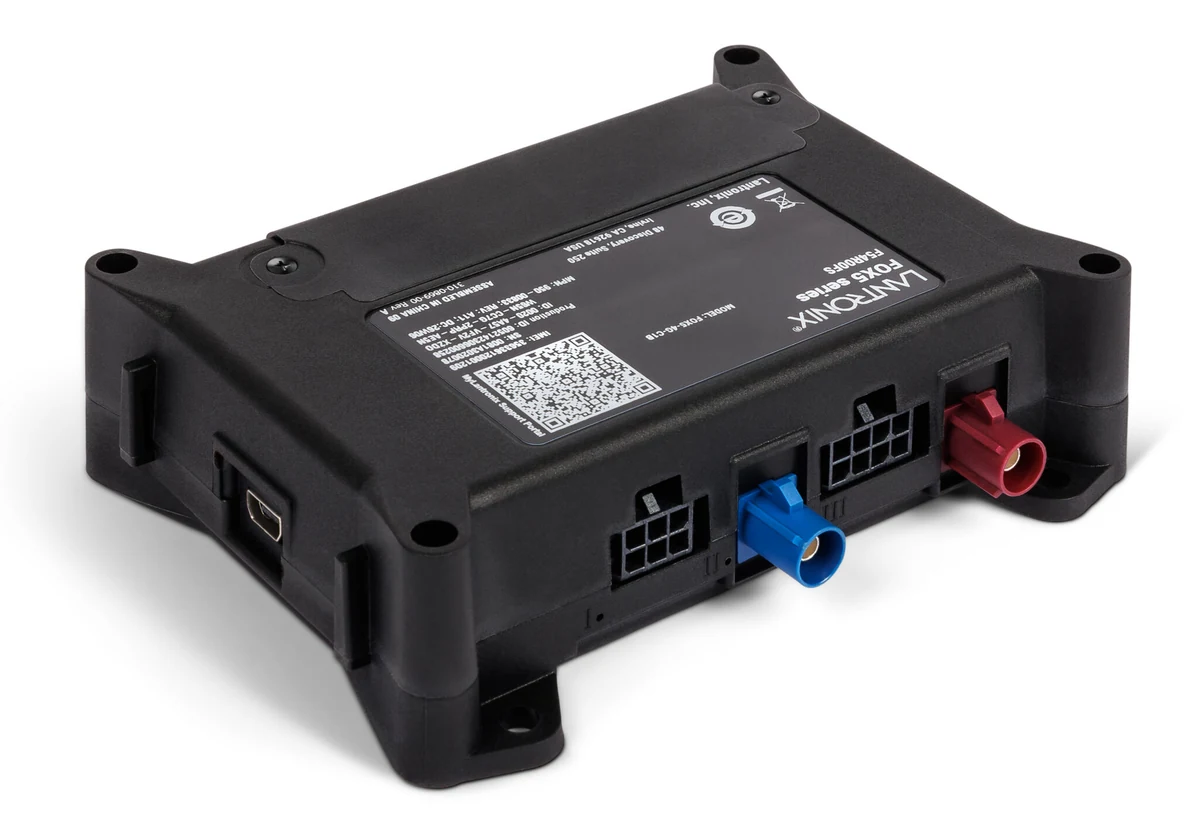

FOX5 Series
4G LTE Cat 1 bis edge gateway for critical asset monitoring and vehicle telematics, with GNSS dead reckoning.
- LTE Cat 1 bis
- Modbus, CAN, J1939
- GNSS dead reckoning
- BLE 5.4
Overview
FOX5 is a cellular edge device that collects data from generators, HVAC plant, fuel tanks, compressors and vehicles and sends it to the cloud over 4G LTE Cat 1 bis. It connects to assets through RS-485, RS-232, CAN bus, 1-Wire and BLE 5.4, and reads vehicle data via OBD-II and J1939. Logic written in Lua or PFAL runs on the device to filter and process data locally, which reduces cellular and cloud costs. Fleets are provisioned and managed through Lantronix Percepxion.
Built for
- Telecom tower generator and battery monitoring
- Commercial vehicle and cold chain telematics
- Rental equipment location and utilisation
- Facility HVAC, boiler and fuel tank monitoring
Key features
Asset interfaces
RS-485 and RS-232 (or two RS-232), CAN bus, 1-Wire, I2C, USB and three configurable I/O.
Edge programming
Lua scripts and the PFAL language run on the device to filter, normalise and act on data locally.
Positioning
Multi-channel GNSS with dead reckoning and A-GPS, an accelerometer and up to 3,000 geofences.
Hardware security
Cryptographic co-processor, secure boot, TLS 1.3 and MQTTS; NDAA compliant.
Fleet management
Zero-touch provisioning and central fleet management through Percepxion.
Specifications
- Cellular
- 4G LTE Cat 1 bis, 2x nano-SIM
- Worldwide model bands
- F54R00FS: B1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26, 28, 34, 38, 39, 40, 41, 66
- Serial
- 1x RS-485 and 1x RS-232, or 2x RS-232
- Other interfaces
- CAN bus, 1-Wire, I2C, USB 2.0, 3 configurable I/O, ignition input
- Wireless and positioning
- BLE 5.4; GPS and GLONASS with dead reckoning
- Power
- 10.8 to 60 VDC; internal 1000 mAh battery; 60 mA at 12 VDC
- Memory
- 32 MB RAM, 64 MB flash
- Operating temperature
- -30 to +85 °C
- Dimensions
- 105 x 83 x 28 mm
Models
| Model | What it is | Key specs |
|---|---|---|
| F54R000S | North America model | LTE Cat 1 bis B2, 4, 5, 12, 13, 14, 66; FCC, IC, PTCRB, AT&T |
| F54R00FS | Worldwide model | LTE Cat 1 bis, 21 bands; CE, UKCA, CB, E-Mark, Telec |
Specifications as published by Lantronix. Configurations vary by model; we will confirm the exact build with your quote.
More in industrial iot
All Lantronix products
BOLERO43 telematics
IP68, dual SIM, Cat M1 with 2G fallback, 72 channel GNSS, powerful scripting.
- IP68
- Dual SIM
- GNSS
- Percepxion
Cellular gateways
Industrial grade, pre-configured with Percepxion and Lantronix Connectivity Services.
Learn more
Cellular routers
Rugged 4G LTE and 5G routers with Ethernet LAN, plus serial, Wi-Fi and I/O on some models.
Learn more
Cellular modems
Compact industrial modems: LTE-M, NB-IoT and LTE Cat 1 bis.
Learn more
Wi-Fi gateways
Secure device gateways for robotics, medical, energy, retail and transport networks.
Learn more

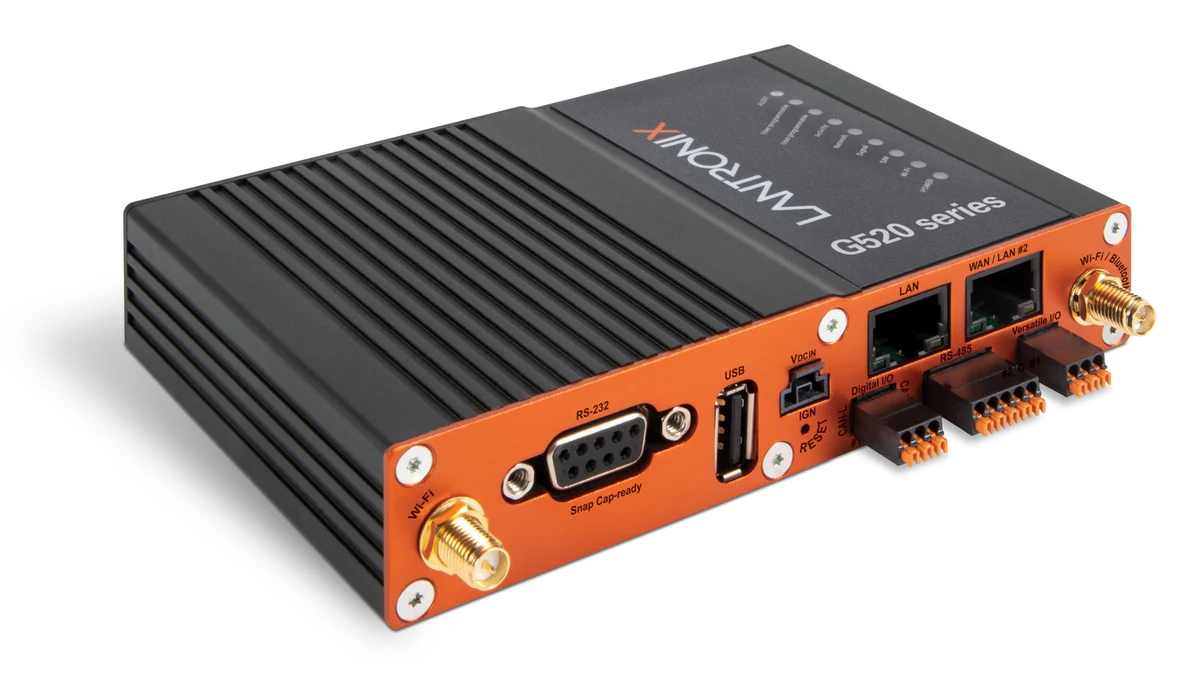

G520 Series
Rugged LTE and 5G IoT cellular gateways with serial, I/O, CAN bus and industrial protocol conversion for remote sites.
- LTE Cat 4 to 5G
- Dual SIM, GNSS
- Wi-Fi 5, BLE 5.1
- -30 to +70 °C

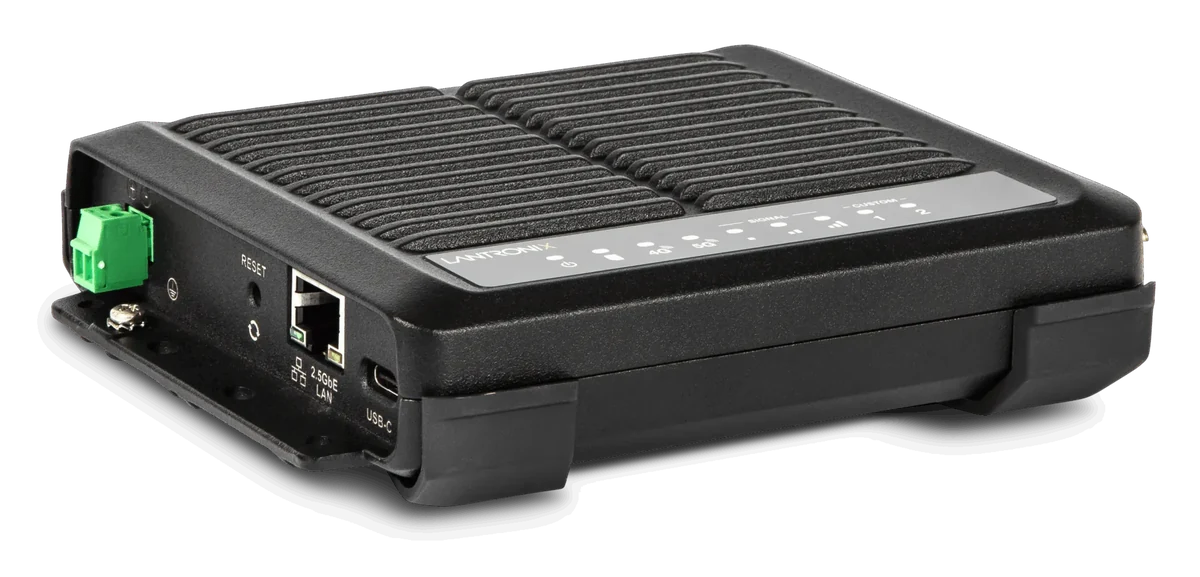

NTC-500 Series
