Robotics

Research robots, configured for your lab.

Intrinsic configures and integrates mobile robots, manipulator arms and sensor suites for research labs and institutes. Two reference builds are below, and everything can be customised.

  • Husky A300 and TurtleBot 3 bases
  • 6 DOF arms with grippers
  • Lidar, depth, IMU, GPS
  • GPU compute on board

ISH008 Mobile Manipulator System

A complete research package for mobile manipulation and human robot interaction.

  • Mobile robot with controller, GPU, GPS, depth camera, IMU and lidar
  • 6 DOF robotic arm with two finger gripper
  • TurtleBot Burger and humanoid robot
  • Raspberry Pi 500

Full details and specifications

ISH008 mobile manipulator

INT820B Wheeled Robot

A four wheel autonomy platform on a Clearpath Husky A300 base with two computers, GPU acceleration and a full sensor suite.

Full details and specifications

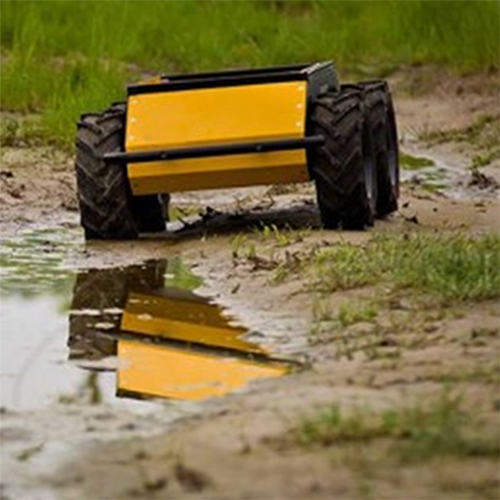

INT820B wheeled robot
Base and power
  • Clearpath Husky A300 chassis with payload framework, onboard microcontroller, encoders, current, voltage and temperature sensing, emergency stop
  • Swappable lithium batteries in the bay or payload area, with charger array
Compute
  • Mini-ITX computer: Intel Core i5, 16 GB RAM, 512 GB NVMe SSD, 2x RS232, USB 3, 2x GigE, PCIe, wireless gamepad
  • Second Mini-ITX with GeForce RTX 5050: 8 GB GDDR6, 2,560 CUDA cores
Communication
  • 5 port network switch with QoS and VLAN, vehicle mounted and wired
  • Wi-Fi router
Sensors
  • Teledyne FLIR Blackfly S camera
  • PolyNav 200S IMU
  • Ouster OS1-32 REV7 lidar, 32 channels

Setting up a robotics lab?

Every platform is integrated, wired and tested before it ships, and we support it on site.
