A 4G and 5G network in a box.
Nutaq builds portable, self-contained 4G and 5G test platforms so cellular devices ship on time and work flawlessly, plus PicoNet small cells for private enterprise and industrial networks.
- eNB/gNB and EPC/5GC in one box
- 3GPP Release 17 to 19
- LTE, LTE-M, NB-IoT and NR SA/NSA
- Pre-configured test cases and automation

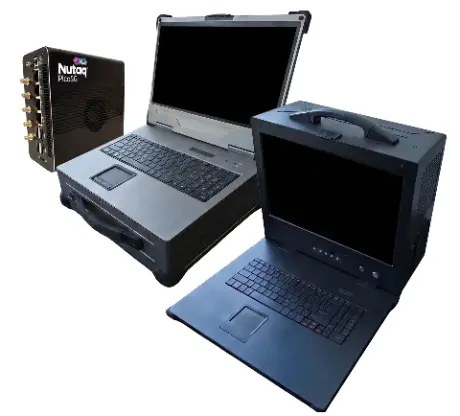

Pico5G Series
A real time 4G and 5G network in one portable box, with pre-configured test cases, a point and click GUI and full automation. Five models from the compact Pico5G IoT to the 4x4 MIMO Pico5G Ultra.
- 3GPP Release 17 to 19: LTE, LTE-M and NB-IoT across the range, 5G NR SA from the Lite, NSA from the Plus
- NTN on the Lite, Plus, Pro and Ultra
- eNB/gNB plus EPC/5GC, up to 100 MHz per RF channel (Pro and Ultra) and up to 6 Gbps downlink (Ultra)
- Band sweeps, coverage edge ramps and power tests that drive the device under test too
- GUI, CLI, REST API and on-box AI copilot
Models

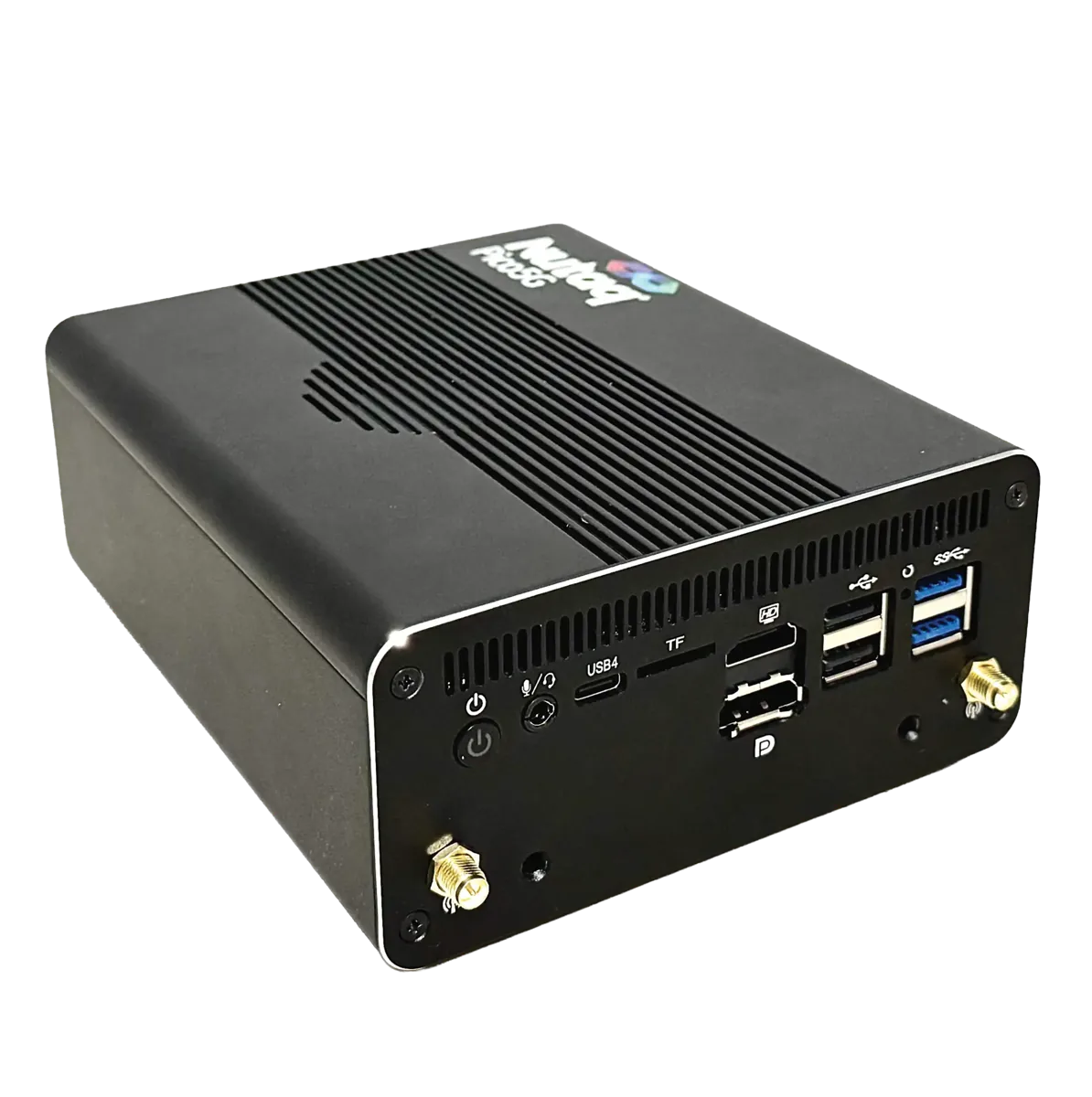

Pico5G IoT
Compact single-cell LTE, LTE-M and NB-IoT network in a box for 4G device testing.
- LTE, LTE-M, NB-IoT
- 3GPP Rel 17
- 1x 2x2 SDR
- 180 Mbps DL
- Compact chassis
Pico5G Lite
Compact single-cell 4G and 5G SA test network with NTN support, for IoT and device validation.
- LTE + 5G SA
- 3GPP Rel 19
- NTN support
- 200 Mbps DL
- Up to 500 UEs

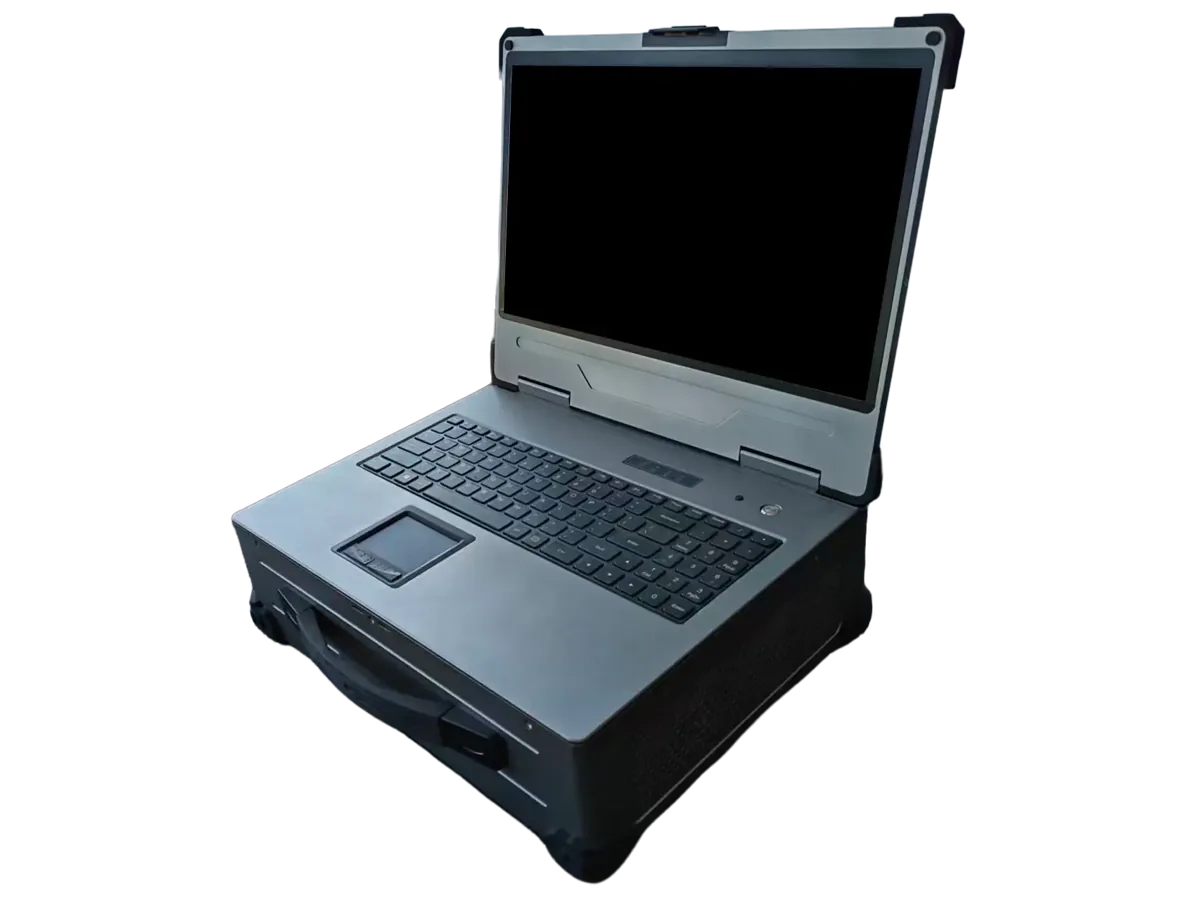

Pico5G Plus
First multi-cell Pico5G model, with 5G SA and NSA, carrier aggregation and a built-in screen.
- 5G SA and NSA
- 3x 2x2 SDR
- Up to 3 cells
- 600 Mbps DL
- Built-in display
Pico5G Pro
5G FR1 test platform with native 100 MHz channels, 4x4 MIMO and up to 4 Gbps downlink.
- 100 MHz channels
- 4x4 MIMO
- 2x 4x4 SDR
- 4 Gbps DL
- Optional FR2

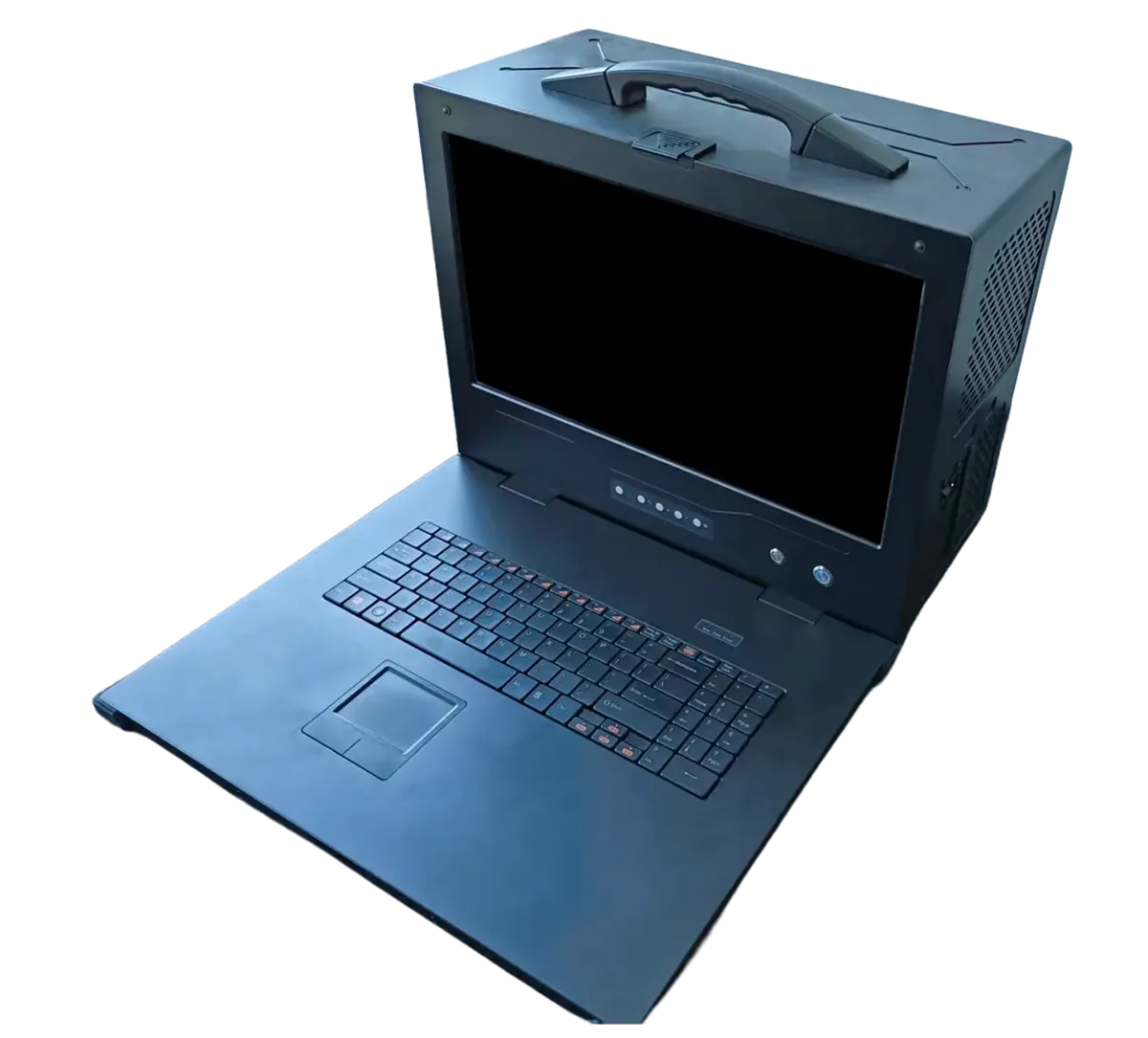

Pico5G Ultra
Top Pico5G model with four 4x4 SDR cards, up to eight 100 MHz channels and up to 6 Gbps downlink.
- 4x 4x4 SDR
- 8x 100 MHz channels
- 6 Gbps DL
- 32-core CPU
- Dual FR2 option

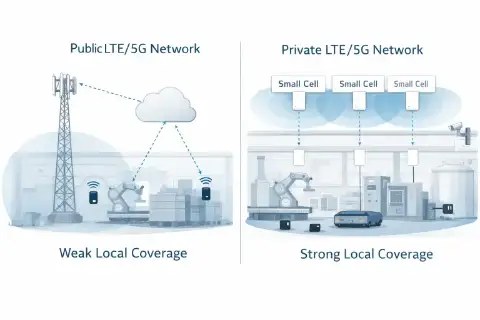

PicoNet
Private LTE and 5G small cells for enterprise and industrial sites. Radio and core in one unit, so coverage reaches the factory floor, campus or remote site where the macro network does not.
- Integrated radio access and core
- LTE bands 28, 38, 39, 41, 42, 43, 48 and 5G NR n28, n38, n39, n41, n48, n77, n78
- Up to 50 MHz bandwidth, 2x2 MIMO, 2x 10 W transmit
- Runs Ubuntu for on-site edge applications
Testing cellular devices or planning a private network?
On site and online training is available with every Nutaq system we deliver. Nutaq also supplies the Amarisoft AMARI Callbox and UE Simbox lines.
