Consensys ECG Development Kit

Overview

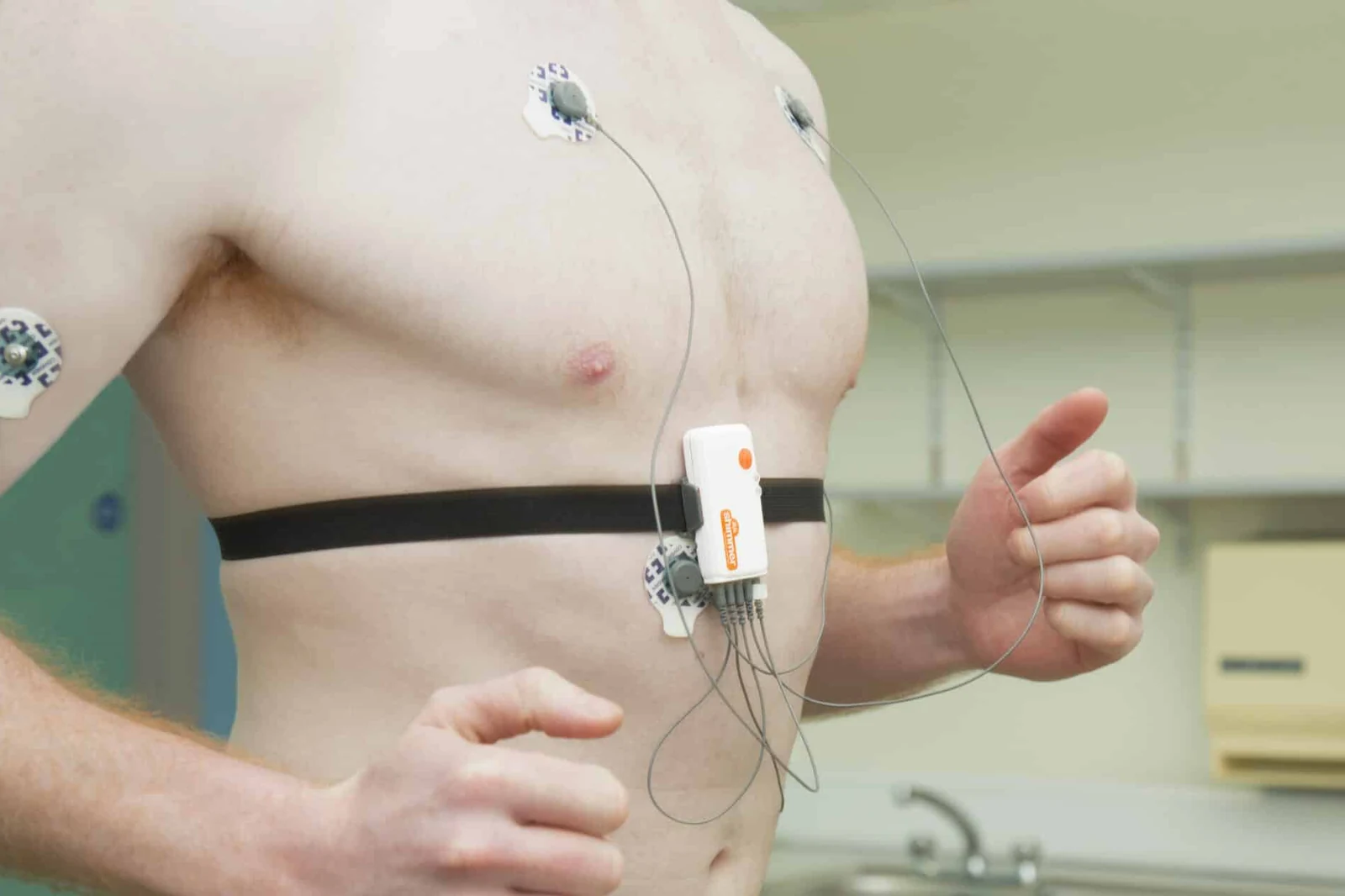

The Consensys ECG Development Kit is built around the Shimmer3R ECG unit, which records 4 channels of ECG from a 5-wire lead set and can also be configured for 2 channels of surface EMG. ECG and EMG cannot be measured at the same time from a single unit. Each unit also carries 10 DoF inertial and altimeter sensing, so motion can be recorded alongside the biopotential signals. Kits are supplied with 1 to 15 units, with a USB-C cable for the single unit kit and a Consensys Base6 or Base15 dock for larger kits, plus straps, leads and electrodes.

Built for

Atrial fibrillation research
Fatigue analysis
Neuro rehabilitation
Sports performance and medicine

Key features

Full ECG lead set

Five wire, four lead ECG measuring bipolar limb leads and a chest lead of the user's choice from V1 to V6.

EMG mode

Each unit can instead measure two channels of surface EMG with a common reference electrode.

Configurable front end

Amplifier gain, data rate and right-leg drive are all set in software.

On-chip extras

Respiration demodulation, lead-off detection and a test signal for validation are built into the front end.

Multi-unit management

The Consensys Base6 or Base15 dock charges, configures and offloads data from several units at once.

Specifications

ECG: 5-wire, 4-channel, bipolar limb leads plus V1 to V6
EMG: 2 channels with common reference
Gain: Software configurable: 1, 2, 3, 4, 6, 8, 12
Data rate: 125 to 8000 SPS, software configurable
Bandwidth: 8.4 kHz
Connections: Hospital-grade 1 mm touchproof DIN42-802 jacks
Processor: STM32U5A5 Arm Cortex-M33, 160 MHz
Wireless: Classic Bluetooth and BLE (Vela IF820)
Storage and battery: MicroSD (8 GB supplied), 400 mAh Li-ion
Unit size and weight: 65 x 32 x 12 mm, 31 g

Configurations

Kit	Shimmer3R ECG units	Dock or cable	Waist straps	18 in biophysical leads	Alcohol swabs	ECG electrodes
ECG Dev Kit x1	1	USB-C cable	1	5	Not listed	50
ECG Dev Kit x2	2	Consensys Base6	2	10	20	100
ECG Dev Kit x3	3	Consensys Base6	3	15	20	100
ECG Dev Kit x4	4	Consensys Base6	4	20	20	100
ECG Dev Kit x5	5	Consensys Base6	5	25	20	100
ECG Dev Kit x6	6	Consensys Base6	6	30	20	100
ECG Dev Kit x7	7	Consensys Base15	7	35	40	150
ECG Dev Kit x8	8	Consensys Base15	8	40	40	150
ECG Dev Kit x9	9	Consensys Base15	9	45	40	150
ECG Dev Kit x10	10	Consensys Base15	10	50	40	150
ECG Dev Kit x11	11	Consensys Base15	11	55	40	150
ECG Dev Kit x12	12	Consensys Base15	12	60	40	150
ECG Dev Kit x13	13	Consensys Base15	13	65	40	150
ECG Dev Kit x14	14	Consensys Base15	14	70	40	150
ECG Dev Kit x15	15	Consensys Base15	15	75	40	150
